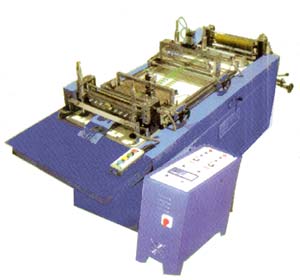

Cut-To-Length Machine ( PVC Label cutting machines )

* TECHNICAL SPECIFICATION * CUT TO LENGTH MACHINE [ SERVO DRIVEN - 12" - HIGH SPEED ]
NUMBER OF STATION [ CUTTING ]	ONE
NUMBER OF STATION [PERFORATION] *	ONE *
MINIMUM WEB WIDTH	50 MM
MAXIMUM WEB WIDTH	305 MM
MACHINE LENGTH	1830 MM
MACHINE WIDTH	815 MM
MACHINE HEIGHT	990 MM
MINIMUM LABEL SIZE	LENGTH 40 MM X WIDTH 40 MM
MAXIMUM LABEL SIZE	LENGTH 750MM X WIDTH 305 MM
MAXIMUM WEB SIZE	305 MM
MAXIMUM MACHINE SPEED	400-360 Pcs/min(for 50mm Length size)
MAIN DRIVE	ONE COMMON MOTOR
UNWIND DRIVE	SYNCHRONISED TO MAIN DRIVE
PERFORATION FUNCTION *	PNEUMATIC *
CUTTER FUNCTION	MECHANICAL SYSTEM
MACHINE COLOR	VIP BLUE & SWAN WHITE
CONVEYOR MOTOR	0.25 HP PMDC GEARED
WEIGHT OF MACHINE	850KG. [APROX]
MAIN MOTOR	2.0 H.P.
SERVO MOTOR	7.15 NM
UNWIND MOTOR	0.5 H.P.
ELECTRICAL LOAD	3.5 KW
[ * ] Optional Attachment

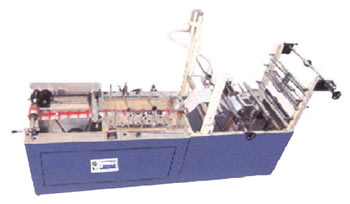

Gluing n Rewinding ( PVC Shrink Label )

* TECHNICAL SPECIFICATION * GLUING & REWINDING MACHINE [PVC]
NUMBER OF STATION [UNWIND]	ONE
NUMBER OF STATION [PERFORATION] *	ONE *VERTICAL
NUMBER OF STATION [REWINDER ]	ONE
MINIMUM WEB WIDTH	60MM
MAXIMUM WEB WIDTH	610 MM
MACHINE LENGTH	2720 MM
MACHINE WIDTH	1350 MM
MACHINE HEIGHT	1625 MM
MINIMUM LABLE WIDTH	30 MM [TUBE FORM ]
MAXIMUM LABLE WIDTH	300 MM [TUBE FORM ]
MAXIMUM MACHINE SPEED	140 MTETERS/MIN.
MAIN DRIVE	3 PHASE AC. MOTOR
UNWINDING TENSION CONTROL	BRAKE- MECHANICAL
REWINDER TENSION CONTROL	CLUTCH - MECHANICAL
SPEED DISPLAY	DIGITAL PROG.COUNTER
MACHINE COLOR	SWAN WHITE AND VIP BLUE
WEIGHT OF MACHINE	850 KGS. [APROX]
MAIN MOTOR A.C.3 PHASE	2.0 HP. [EMPIRE /HINDUSTAN]
SPEED CONTROLLER	2.0 HP.VFD.[DELTA MAKE]
ELECTRICAL LOAD	2.0 KW.
[ * ] Optional Attachment

* TECHNICAL SPECIFICATION * 'U' CUT PVC POUCH MACHINE 300MM
NUMBER OF STATION [ CUTTING ]	ONE
NUMBER OF STATION [PERFORATION]	ONE *
MINIMUM WEB WIDTH	50 MM
MAXIMUM WEB WIDTH	305 MM
MACHINE LENGTH	3350 MM
MACHINE WIDTH	815 MM Revised - 940MM
MACHINE HEIGHT	990 MM
MINIMUM LABEL SIZE POUCH SIZE	LENGTH 80 MM X WIDTH 50 MM 125MM X WIDTH 50MM
MAXIMUM OUCH SIZE	950 MM X 300MM
MAXIMUM WEB SIZE	300 MM
MAXIMUM MACHINE SPEED	90-100 PCS/MIN (FOR 200 MM LENGTH)
MAIN DRIVE	ONE COMMON MOTOR With GEARBOX
UNWIND DRIVE	SYNCHRONISED TO MAIN DRIVE
PERFORATION FUNCTION	PNEUMATIC * OPTIONAL
CUTTER FUNCTION	PNEUMATIC
MACHINE COLOR	VIP BLUE & SWAN WHITE
WEIGHT OF MACHINE	1000 KGS. [APPROX]
MAIN MOTOR	2.0 HP.
SERVO MOTOR	7.15 NM/ 1500 WATT.
SEALING STN :	ONE
CONVEYOR MOTOR (GEARED)	0.5 H.P. 01 NO.
U/W MOTOR (GEARED)	0.5 H.P. 01 NO.
HEATER	2.25 K.W.
